Feature

The SOAP component is a Binding Component (BC) which enables to interact with external Web Services and to expose JBI services as Web Services.

In provider role, when a JBI MessageExchange is sent to a ServiceEndpoint (mapped to a Web Service), it is transformed into a SOAP message and sent to the linked external Web Service. In consumer role, when a SOAP message is received on an exposed Web Service, transformed into a JBI MessageExchange and sent to the corresponding JBI ServiceEndpoint.

The SOAP component is based on Apache Axis2 v1.4.1 (http://ws.apache.org/axis2/) and Mortbay Jetty v6.1.9 (http://jetty.codehaus.org/jetty/). It provides the following features :

Expose JBI Services as Web Services
Expose Web Services as JBI Services
Handle SOAP attachments. The attachments of the incoming SOAP message are placed into the JBI message as attachments; the JBI attachments are placed in the outgoing SOAP message as attachments.

If you want more details about SOAP, you can consult this W3C specification : http://www.w3.org/TR/soap/.

All attachment are processed by using XOP rules. (XML-binary Optimized Packaging : http://www.w3.org/TR/xop10/)

Exposing an external Web Service as a JBI service endpoint

In provide mode, the component exposes an external Web Service in the JBI environment to send SOAP requests to the external Web Service.

Usage

The petals-bc-soap component can expose an external Web Service as a JBI service endpoint by deploying a Service Unit on it:

Provides an external Web Service as a JBI service

When a message is received on a SOAP linked endpoint from the JBI environment, it is transformed into a SOAP message and sent to the Web Service. The address of the Web Service to send the SOAP message to is defined in the address extension of the deployed Service Unit.

The SOAP message is created like this:

The JBI message payload is wrapped in the SOAP body
The JBI message attachments are used to create SOAP ones
The JBI message exchange operation is used to create the SOAP action
The JBI MEP is used to determine the SOAP MEP

The external Web Service is called and the SOAP response is processed and returned to the JBI environment.

Configuration

Configuration of a Service Unit to provide a service (JBI)

Parameter	Description	Default	Required
provides	Describe the JBI service that will be exposed into the JBI bus. Interface (QName), Service (QName) and Endpoint (String) attributes are required.	-	Yes

Configuration of a Service Unit to provide a service (CDK)

Parameter	Description	Default	Required
timeout	Timeout in milliseconds of a synchronous send. This parameter is used by the method `sendSync` (Exchange exchange) proposes by the CDK `Listeners` classes. Set it to 0 for an infinite timeout.	30000	No
exchange-properties	This sections defines the list of properties to set to the JBI exchange when processing a service.	-	No
message-properties	This sections defines the list of properties to set to the JBI message when processing a service.	-	No
validate-wsdl	Activate the validation of the WSDL when deploying a service unit.	true	No
wsdl	Path to the WSDL document describing services and operations exposed by the provided JBI endpoints defined in the SU. The value of this parameter is : an URL a file relative to the root of the SU package If not specified, a basic WSDL description is automaticaly provided by the CDK.	-	No
forward-attachments	Defines if attachment will be forwarded from IN message to OUT message.	false	No
forward-message-properties	Defines if the message properties will be forwarded from IN message to OUT message.	false	No
forward-security-subject	Defines if the security subject will be forwarded from IN message to OUT message.	false	No

Service Unit attributes to provide services

Attribute

Description

Default value

Required

soap-version

The SOAP version used to create SOAP messages.

Possible values are 1.1 and 1.2.

1.1

Yes

address

Address of the external Web Service to send JBI messages to.

Yes

chunked-mode

Activate the HTTP chunked mode on Web Service calls.

Possible values are: true, false.

false

Yes

synchronous-timeout

The timeout value when invoking a external service.

Note
This value override the CDK value.

The value is expressed in milliseconds.

No

cleanup-transport

Cleanup the transport after the call of the external Web Service.

Not cleaning up the transport can cause timeouts on large number of calls.

Possible values are: true, false.

true

Yes

mode

The mode to be used to send SOAP message to the specified address.

Possible values are: SOAP for basic Web Service calls, JSON for JSON service calls and REST for REST service calls.

SOAP

Yes

enable-compatibility-for

Enables the compatibility with a specified Web Service stack.

Possible values are: AXIS1 for Axis 1 Web Service stack.

No

proxy-host

The proxy host name.

If it is not set, the proxy mode will be disabled and all others proxy parameters are ignored.

No

proxy-port

The proxy host port.

No

proxy-user

The proxy user.

No

proxy-password

The proxy password.

No

proxy-domain

The proxy domain.

No

rest-http-method

The HTTP method to be used in REST mode.

Possible values are: GET for the HTTP method GET, POST for the HTTP method POST, PUT for the HTTP method PUT and DELETE for the HTTP method DELETE.

No

Service Unit descriptor

The service unit is configurable via its extensions in the jbi.xml file:

<?xml version="1.0" encoding="UTF-8"?>
<jbi:jbi version="1.0"
    xmlns:generatedNs="http://petals.ow2.org/"
    xmlns:jbi="http://java.sun.com/xml/ns/jbi"
    xmlns:petalsCDK="http://petals.ow2.org/components/extensions/version-5"
    xmlns:soap="http://petals.ow2.org/components/soap/version-4"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <jbi:services binding-component="true">

        <jbi:provides
            interface-name="generatedNs:IntegrationService"
            service-name="generatedNs:IntegrationService"
            endpoint-name="IntegrationServiceSOAP">

            <!-- CDK specific elements -->
            <petalsCDK:timeout>1000</petalsCDK:timeout>
            <petalsCDK:validate-wsdl>true</petalsCDK:validate-wsdl>
            <petalsCDK:forward-security-subject>false</petalsCDK:forward-security-subject>
            <petalsCDK:forward-message-properties>false</petalsCDK:forward-message-properties>
            <petalsCDK:forward-attachments>false</petalsCDK:forward-attachments>
            <petalsCDK:wsdl>IntegrationService.wsdl</petalsCDK:wsdl>

            <!-- Component specific elements -->
            <soap:address>http://localhost:8088/mockIntegrationServiceSOAP</soap:address>
            <soap:soap-version>1.1</soap:soap-version>
            <soap:chunked-mode>false</soap:chunked-mode>
            <soap:cleanup-transport>true</soap:cleanup-transport>
            <soap:mode>SOAP</soap:mode>
        </jbi:provides>
    </jbi:services>
</jbi:jbi>

Service Unit content

The Service Unit has to contain the following elements, packaged in an archive:

The META-INF/jbi.xml descriptor file, has described above,
An optional imported WSDL file describing the partner service

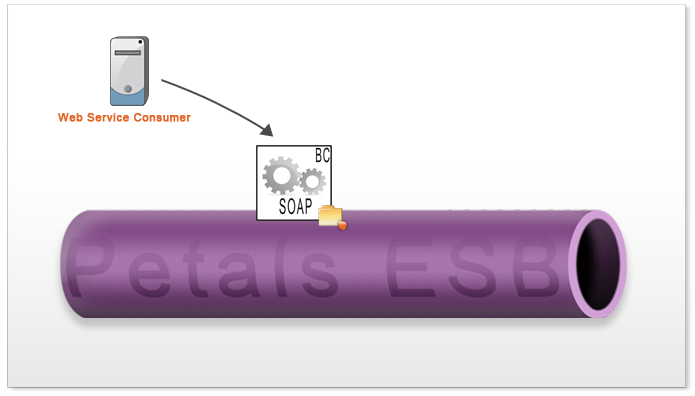

Exposing an internal JBI service endpoint as a Web Service

In consumer mode, the component exposes an internal JBI service outside the bus to transfer incoming SOAP requests to the internal service.

Usage

The petals-bc-soap component can listen incoming SOAP messages and send messages to a JBI service endpoint by deploying a Service Unit on it. The component consumes the JBI service:

Consumes a JBI service on SOAP message

The service-name Service Unit extension value will be used as Axis 2 service name.

When a SOAP message is handled by the Axis 2 service, it is transformed into a JBI Message and sent to the JBI service endpoint configured in the Service Unit. The JBI message is created like this:

The JBI operation is created from the SOAP action.
Copy the SOAP body into the JBI one.
Put the SOAP attachments into JBI ones.
Put the SOAP headers into the "SOAP.HEADER" JBI message property.

By default, the component is configured to handle URI with the http://localhost:8084/petals/services/<service-name> pattern (this URI can be configured in the [SOAP component configuration]). It also handles ?wsdl calls; the WSDL description is retrieved from the endpoint and sent back to the consumer.

By default, the list of services is available at http://[localhost:8084|http://HOST:PORT/petals/services/listServices]/petals/services/listServices URI (it can also be configured in the [SOAP component configuration]).

Configuration

Configuration of a Service Unit to consume a service (JBI)

Parameter	Description	Default	Required
consumes	Refer JBI service to invoke into the JBI bus. You can define an explicit endpoint: interface (QName) / Service (QName) / Endpoint (String) attributes. Or define implicit endpoint, to let the container routing according to QOS configurations (HA...): -by Interface attribute (QName) -by Service attribute (QName)	-	Yes

Configuration of a Service Unit to consume a service (CDK)

Parameter	Description	Default	Required
mep	Message exchange pattern abbreviation. This parameter can be used in conjunction with the method of the CDK Listeners: `createMessageExchange(Extensions extensions)`. This method returns a CDK Exchange corresponding to the type of the specified pattern.	-	Yes
operation	Operation to call on a service. This parameter can be used in conjunction with the sending methods of the Listeners. If no operation is specified in the Message Exchange to send, this parameter will be used.	-	No
timeout	Timeout in milliseconds of a synchronous send. This parameter can be used in conjunction with the sendSync(Exchange exchange) method of the Listeners. Set 0 for an infinite timeout.	30000	No

Service Unit attributes to consume services

Attribute

Description

Default value

Required

service-name

Web Service name to expose.

No

soap-action

The SOAP action QName to be used for the Web Service, will override the JBI message operation.

No

synchronous-timeout

The timeout value when inoking a service in the JBI bus.

Note
This value override the CDK value.

The value is expressed in milliseconds.

No

mode

The mode to be used to receive messages.

Possible values are: SOAP for basic Web Service messages, JSON for JSON service messages and REST for REST service messages.

SOAP

Yes

enable-compatibility-for

Enables the compatibility with a specified Web Service stack.

Possible values are: AXIS1 for Axis 1 Web Service stack.

No

enable-http-transport

Enable the HTTP transport layer to send or receive SOAP messages.

Possible values are: true, false.

true

No

enable-jms-transport

Enable the JMS transport layer to receive SOAP messages.

Possible values are: true, false.

false

No

http-services-redirection

HTTP redirection alias(es) for exposed Web Service.

No

service-parameters

Additional XML configuration for created Axis2 service as CDATA, same as the Axis 2 services.xml file one.

No

modules

A list of Axis2 modules names to engage (separated by comas).

No

address

Same as service-name.

Warning
This parameter must not be used any more. service-name must be used.

No

rest-add-namespace-uri

The namespace URI to be used in the the generated JBI message payload.

No

rest-add-namespace-prefix

The namespace prefix to be used in the the generated JBI message payload (used when NS URI is defined).

soapbc

No

rest-remove-prefix-on-response

A list of NS prefixes to remove from the JBI message response (Coma Separated Values)

No

Service Unit descriptor

The service unit is configurable via its extensions in the jbi.xml file:

<?xml version="1.0" encoding="UTF-8"?>
<jbi:jbi version="1.0"
    xmlns:generatedNs="http://petals.ow2.org/"
    xmlns:jbi="http://java.sun.com/xml/ns/jbi"
    xmlns:petalsCDK="http://petals.ow2.org/components/extensions/version-5"
    xmlns:soap="http://petals.ow2.org/components/soap/version-4"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <jbi:services binding-component="true">

        <jbi:consumes
            interface-name="generatedNs:IntegrationService"
            service-name="generatedNs:IntegrationService"
            endpoint-name="IntegrationServiceSOAP">

            <!-- CDK specific elements -->
            <petalsCDK:timeout>500</petalsCDK:timeout>
            <petalsCDK:mep xsi:nil="true" />

            <!-- Component specific elements -->
            <soap:address>IntegrationServiceSOAPByPetals</soap:address>
            <soap:mode>SOAP</soap:mode>
            <soap:rest-add-namespace-prefix>soapbc</soap:rest-add-namespace-prefix>
            <soap:enable-http-transport>true</soap:enable-http-transport>
            <soap:enable-jms-transport>false</soap:enable-jms-transport>
        </jbi:consumes>
    </jbi:services>
</jbi:jbi>

Service Unit content

The Service Unit has to contain the following elements, packaged in an archive:

The META-INF/jbi.xml descriptor file, has described above

Exposing an internal JBI service endpoint as a Web Service

In consumer mode, the component exposes an internal JBI service outside the bus to transfer incoming SOAP requests to the internal service.

Usage

Configuration

Service Unit descriptor

The service unit is configurable via its extensions in the jbi.xml file:

<?xml version="1.0" encoding="UTF-8"?>
<jbi:jbi version="1.0"
    xmlns:generatedNs="http://petals.ow2.org/"
    xmlns:jbi="http://java.sun.com/xml/ns/jbi"
    xmlns:petalsCDK="http://petals.ow2.org/components/extensions/version-5"
    xmlns:soap="http://petals.ow2.org/components/soap/version-4"
    xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">

    <jbi:services binding-component="true">

        <jbi:consumes
            interface-name="generatedNs:IntegrationService"
            service-name="generatedNs:IntegrationService"
            endpoint-name="IntegrationServiceSOAP">

            <!-- CDK specific elements -->
            <petalsCDK:timeout>500</petalsCDK:timeout>
            <petalsCDK:mep xsi:nil="true" />

            <!-- Component specific elements -->
            <soap:address>IntegrationServiceSOAPByPetals</soap:address>
            <soap:mode>SOAP</soap:mode>
            <soap:rest-add-namespace-prefix>soapbc</soap:rest-add-namespace-prefix>
            <soap:enable-http-transport>true</soap:enable-http-transport>
            <soap:enable-jms-transport>false</soap:enable-jms-transport>
        </jbi:consumes>
    </jbi:services>
</jbi:jbi>

Component Configuration

The following attributes can be set during the installation phase to configure the component, using the params element of the jbi-install-component ANT task:

Unable to render {include} Couldn't find a page to include called: 0 CDK Component Configuration Table

Specific configuration of the SOAP component

Attribute	Description	Default value	Required
http-port	Port of the embedded Jetty HTTP server.	8084	No
http-host	Local Hostname to be used, can be hostname or host IP address. If this parameter is not set, all interfaces are listen.	localhost	No
http-service-list	Enables to display the available Web Service list. Possible values are: true, false.	true	No
http-service-context	The URL context.	petals	No
http-service-mapping	The URL service mapping.	services	No
http-thread-pool-size-min	The minimum size of the HTTP thread pool.	2	No
http-thread-pool-size-max	The maximum size of the HTTP thread pool.	255	No
http-acceptors	Number of HTTP acceptors.	4	No
java-naming-factory-initial	The initial context factory class needed to access the JNDI server where the JMS connection factory can be found.		No
java-naming-provider-url	The JNDI provider URL where the JMS connection factory can be found.		No
jms-connection-factory-jndiname	Name of the default JMS connection factory in the JNDI.		No

Definition of CDK parameter scope :

Installation: The parameter can be set during the installation of the component, by using the installation MBean (see JBI specifications for details about the installation sequence). If the parameter is optional and has not been defined during the development of the component, it is not available at installation time.
Runtime: The paramater can be set during the installation of the component and during runtime. The runtime configuration can be changed using the CDK custom MBean named RuntimeConfiguration. If the parameter is optional and has not been defined during the development of the component, it is not available at installation and runtime times.

Component descriptor

The component is configurable via its extensions in the jbi.xml file:

<?xml version="1.0" encoding="UTF-8"?>
<jbi:jbi version="1.0" xmlns:jbi="http://java.sun.com/xml/ns/jbi"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:petalsCDK="http://petals.ow2.org/components/extensions/version-5"
	xmlns:soap="http://petals.ow2.org/components/soap/version-4">
	<jbi:component type="binding-component"
		bootstrap-class-loader-delegation="parent-first">
		<jbi:identification>
			<jbi:name>petals-bc-soap</jbi:name>
			<jbi:description> The SOAP Binding Component (based on Axis2 + Jetty)</jbi:description>
		</jbi:identification>
		<jbi:component-class-name>org.ow2.petals.binding.soap.SoapComponent</jbi:component-class-name>
		<jbi:component-class-path><jbi:path-element/></jbi:component-class-path>
		<jbi:bootstrap-class-name>org.ow2.petals.binding.soap.SoapBootstrap</jbi:bootstrap-class-name>
		<jbi:bootstrap-class-path><jbi:path-element/></jbi:bootstrap-class-path>

		<!-- Component Development Kit Parameters -->
		<petalsCDK:acceptor-pool-size>5</petalsCDK:acceptor-pool-size>
		<petalsCDK:processor-pool-size>10</petalsCDK:processor-pool-size>
		<petalsCDK:ignored-status>DONE_AND_ERROR_IGNORED</petalsCDK:ignored-status>
		<petalsCDK:properties-file />
		<petalsCDK:notifications>false</petalsCDK:notifications>
		<petalsCDK:jbi-listener-class-name>org.ow2.petals.binding.soap.listener.outgoing.JBIListener</petalsCDK:jbi-listener-class-name>
		<petalsCDK:external-listener-class-name>org.ow2.petals.binding.soap.listener.incoming.SoapExternalListener</petalsCDK:external-listener-class-name>

		<!-- SOAP Component Parameters -->
		<soap:http-port>8084</soap:http-port>
		<soap:http-host>localhost</soap:http-host>
		<soap:http-services-list>true</soap:http-services-list>
		<soap:http-services-context>petals</soap:http-services-context>
		<soap:http-services-mapping>services</soap:http-services-mapping>
		<soap:http-thread-pool-size-min>2</soap:http-thread-pool-size-min>
		<soap:http-thread-pool-size-max>50</soap:http-thread-pool-size-max>
		<soap:http-acceptors>4</soap:http-acceptors>

		<!-- JMS transport layer, default JMS connection factory, uncommented to activate -->
		<!--<soap:java-naming-factory-initial>org.apache.activemq.jndi.ActiveMQInitialContextFactory</soap:java-naming-factory-initial> -->
		<!--<soap:java-naming-provider-url>tcp://localhost:61616</soap:java-naming-provider-url> -->
		<!--<soap:jms-connection-factory-jndiname>QueueConnectionFactory</soap:jms-connection-factory-jndiname> -->
	</jbi:component>
</jbi:jbi>
